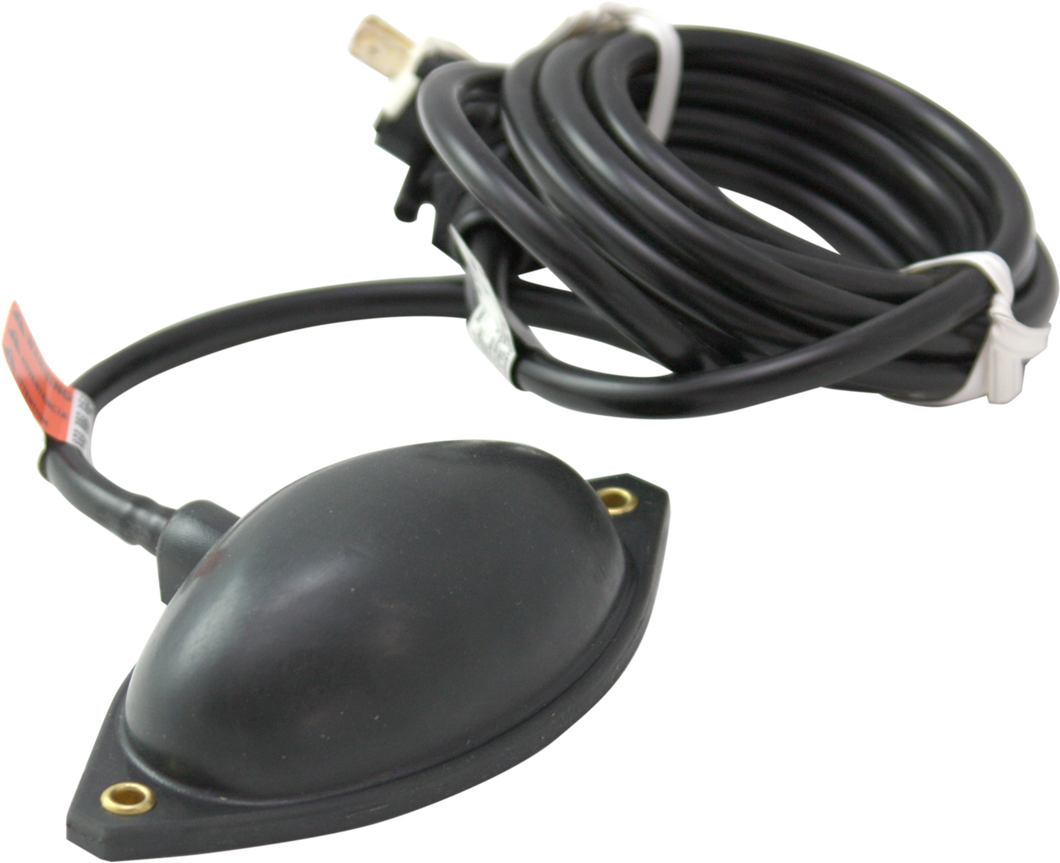

Vanguard - Maintained (81DH12)

Regular price $55.95 Sale

EN 60529 Degree of Protection IPXX Master Actuator

EN 60529 Degree of Protection IP00 Snap Switch

MAINTAINED AIR SWITCH

ISOLATED ELECTRIC SNAP SWITCH

ERGONOMIC VERSATILE DESIGN



MATERIALS OF CONSTRUCTION:

• Molded PVC bulb

• Designed with isolated electrical air switch

• Combines a foot operated air bulb and a remotely located electric snap switch

• Brass fittings

• Actuating Bulb supplied with two grommet mounting holes (Standard Only)


FEATURES & BENEFITS:

• Easy to operate by hand or foot

• Up to 30 foot range using PVC tubing

• Isolates operation from electrically live switch

• Offers environmental protection from short or shock

• Designed for long life trouble free operation

• Simple field replacement of components

• Application versatility

• Ease of interfacing



OPTIONS:

• Air foot switches are also available in the Premier and Dolphin housings, as well as, a hand operated version

• Aluminum Baseplate

• DPDT Model available

• Clear reinforced tubing available



  Warning: This Product can expose you to chemicals including Nickel, which is known to the sate of California to cause cancer and birth defects or other reproductive harm. For more information please visit www.p65warnings.ca.gov



Dimensions

SIZE (HxWxD):

 .85 x 2.63 x 3.50 in.

WEIGHT:

8.00 oz.



Agency Approvals Description Circuit Form Operating Temperature Range Electrical Ratings




Standard Maintained




SPDT

C

10˚F to 120˚F



20 A 125-250 VAC

1 H.P. 125 VAC

2 H.P. 250 VAC



Supplied with 8 ft. 1/8” I.D. Black PVC tubing.

The operating temperature range will vary with different lengths of tubing. Please consult the factory for details.

View Data Sheet - Link to data sheet

Replacement Part - 981-ZZ
