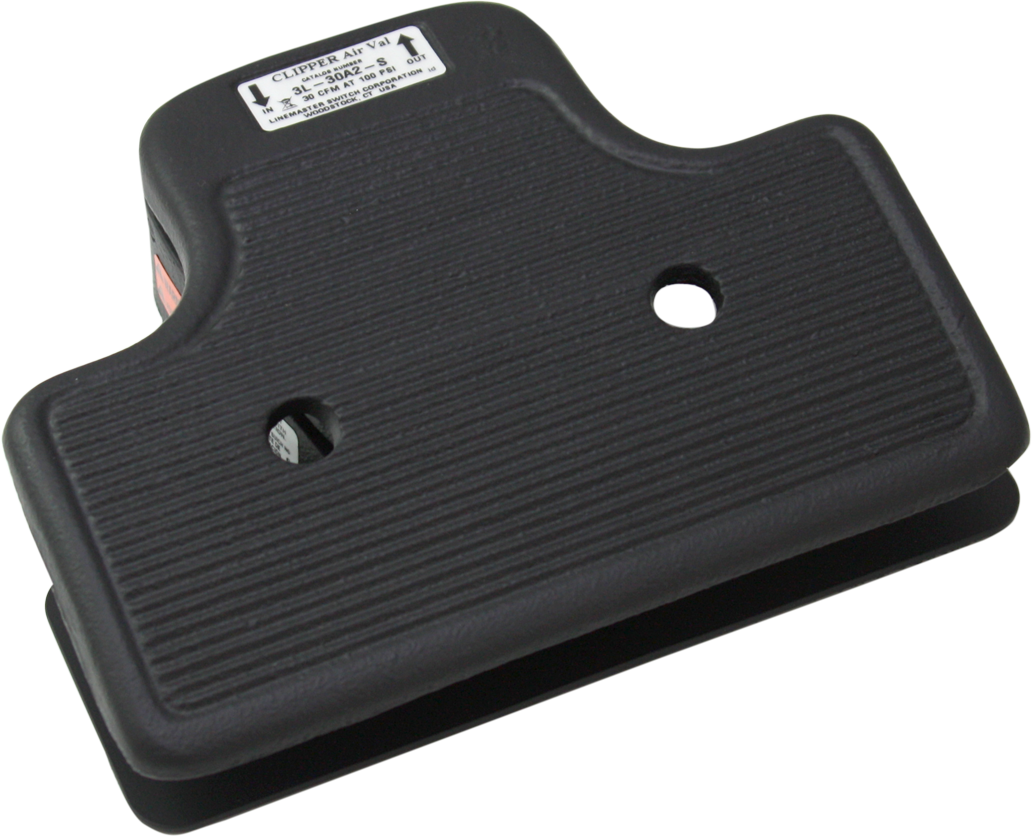

Airval - Clipper Wide Treadle (3L-30A2-S)

VARIABLE/MOMENTARY PNEUMATIC CONTROL

MEDIUM DUTY GENERAL PURPOSE DESIGN

MATERIALS OF CONSTRUCTION:

• Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings

• Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side

• Air exhausts around plunger

• Operating temperature 0˚ to 131˚ F (-18˚ to +55˚C)

• Rugged Cast Iron Housing

FEATURES & BENEFITS:

• Designed for long life operation

• Nonskid Base Pad

• Two-Way models do not exhaust back pressure

• Plunger can be depressed flush with valve body without damage to valve

• Standard 1/8-27 N.P.T. input and output ports

• Filtered and lubricated air supply is required for best operation

• Line pressure up to 150 P.S.I.

• 2 holes provided for rigid mounting to floor or equipment

OPTIONS:

• 2-way, 3-way and 4-way models available

• Heavy gauge steel guard available

Warning: This Product can expose you to chemicals including Nickel, which is known to the sate of California to cause cancer and birth defects or other reproductive harm. For more information please visit www.p65warnings.ca.gov

Dimensions

View Data Sheet - Link to data sheet

Replacement Parts - 3-30A2-SI
